Features
- High injection precision and stable operation over long runs; sealed to prevent leakage
- Wide range: 0.6 nl minimum, 5,000 nl maximum injection volume
- Resumes an unfinished program after a power cut, so an interruption doesn't cost the experiment
- Needle retention time setting at the end of an intracranial injection, no separate timer needed
- 5.0" capacitive touch screen with adjustable brightness, on a 15° bevel for easy reading
- Guarded buttons against accidental touches
- Soft, keyed cables: no torque on the injector when mounted on a positioner, and no mis-mating
Use it with
Specifications
| Injection speed | 0.02–200 nl/s (1.20–12,000 nl/min) |
|---|---|
| Speed resolution | 0.01 nl/s (0.1 nl/min) |
| Filling / emptying rate | 0.02–200 nl/s (1.20–12,000 nl/min) |
| Reset speed | 200 nl/s (12,000 nl/min) |
| Injection volume | 0.6 nl to 5,000.0 nl |
| Volume resolution | 0.1 nl |
| Piston travel | 28 mm |
| Cycles | 1–8,000 |
| Delay time | 1–999 s |
| Glass electrode | OD 1.14 mm, ID 0.53 mm |
| Display | 5.0" capacitive touch screen |
| Control unit size | 170 × 120 × 45 mm |

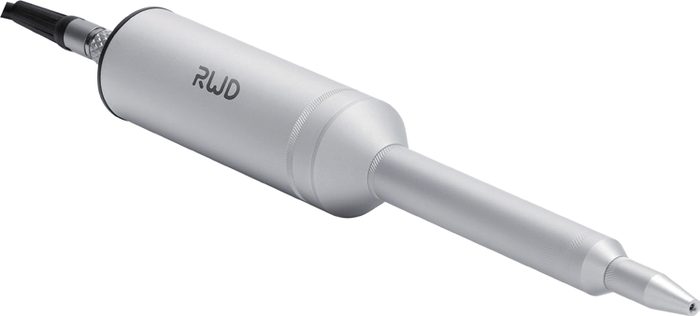

| Injection unit length | 20 cm |
| Cable length | 100 cm injector to control unit; 200 cm foot switch (optional) |
| Weight | Control unit 0.8 kg; injection unit 0.2 kg; foot switch 1.5 kg |
What's in the box, and options
| Model | Item | Qty | |
|---|---|---|---|
| — | Injection unit, control unit, connection cable, power adapter | 1 each | Standard |
| GC-3.5 | Glass capillary without filament, 3.5", OD 1.14 / ID 0.53 mm (100/pack) | 2 | Standard |
| R480-SF | Universal adapter for all nanojects, for stereotaxic and micromanipulator use | 1 | Standard |
| R480-FN | Filling needle, for oil filling | 1 | Standard |
| R480-SM | Sealing material, for replacing the seal inside the injection unit | 1 | Standard |
| R480-FS | Foot switch and cable, for injecting, emptying and other operations | 1 | Optional |

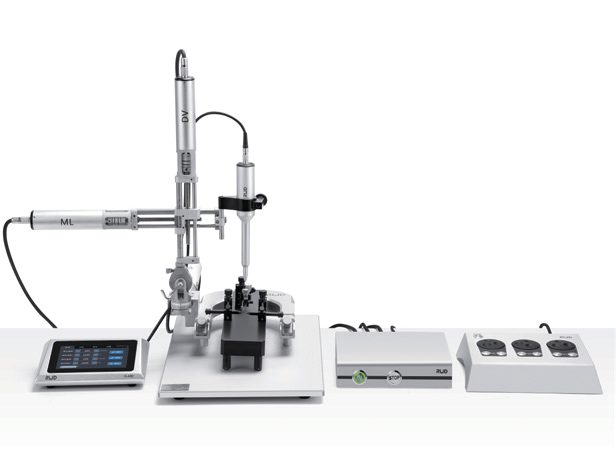

| R480-AFM | Dedicated fastener for the RWD electric micromanipulator | 1 | Optional |

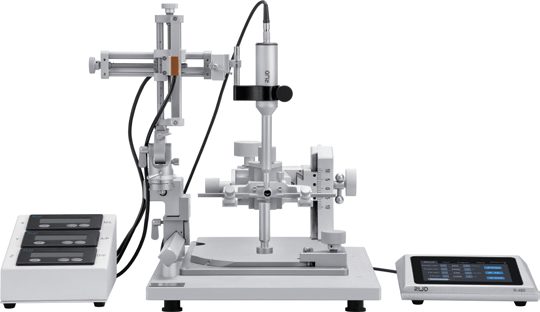

| 68207 | V attachment for stereotaxic instruments | 1 | Optional |
